Architecture

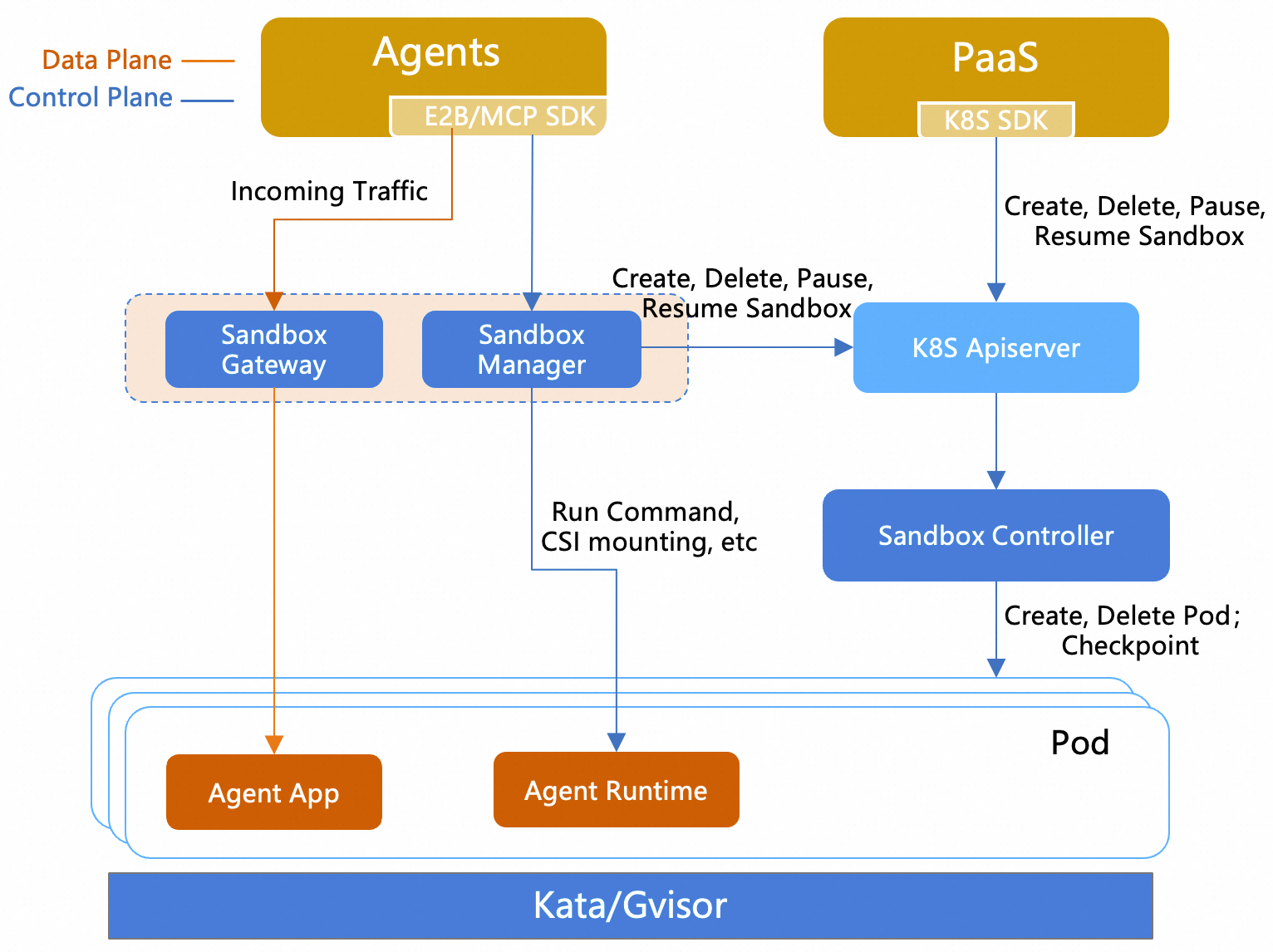

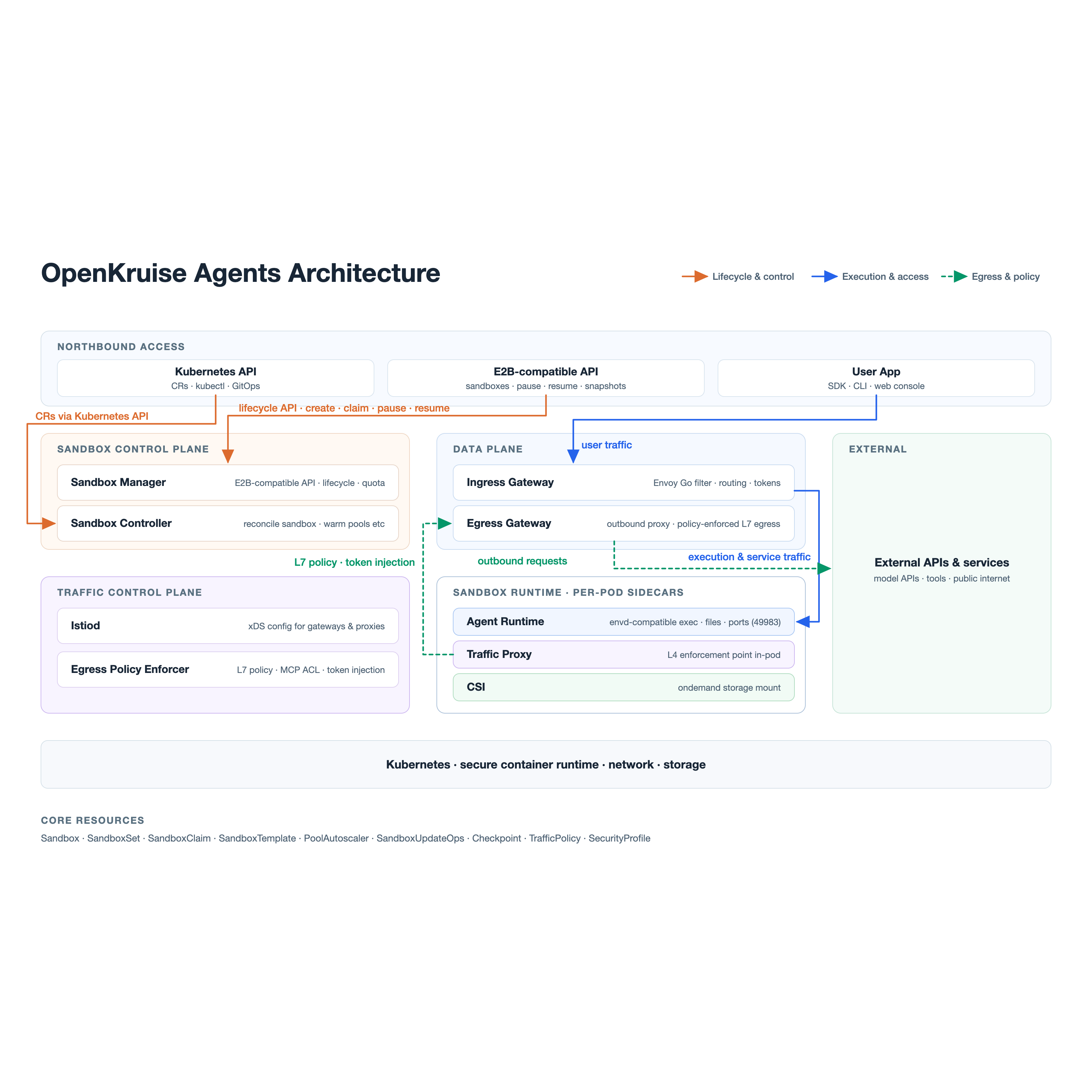

The overall architecture of OpenKruise Agents is shown as below:

sandbox-manager

sandbox-manager is a stateless backend management component. It serves the E2B-compatible northbound API and owns sandbox lifecycle, quota, and route & traffic-token orchestration.

sandbox-controller

sandbox-controller contains a group of controllers responsible for the reconciliation of resources such as Sandbox, SandboxSet, SandboxClaim and warm pools. It also provides the admission webhooks for the related CRD resources.

sandbox-gateway

sandbox-gateway is the data plane, built as Envoy Go filters:

• The ingress gateway proxies user traffic to the sandboxes, with host/path routing, access tokens and wake-on-traffic.
• The egress gateway proxies outbound sandbox traffic with policy-enforced L7 egress.

agent-runtime

agent-runtime is a sidecar injected into the Sandbox that provides utility services for the sandbox, including E2B envd-compatible command, file and port (49983) operations.

traffic-proxy

traffic-proxy is a sidecar that acts as the in-pod L4 enforcement point for egress traffic policies.

csi

The CSI sidecar provides on-demand storage mounts for the sandbox.

traffic-control-plane

The traffic control plane configures and enforces egress policy:

• istiod distributes xDS configuration to the gateways and the in-pod proxies.
• The egress policy enforcer applies L7 policy, MCP ACL and token injection on egress traffic.

API

OpenKruise Agents exposes northbound APIs in two forms: the E2B-compatible API and the Kubernetes API (CRDs).

K8S APIs

OpenKruise Agents provides Kubernetes API in the forms of CRD，and they're targeting for platform builders and infrastructure teams. They cover the core sandbox resources (Sandbox, SandboxSet, SandboxClaim, SandboxTemplate, PoolAutoscaler, SandboxUpdateOps, Checkpoint) as well as traffic and security policy resources (TrafficPolicy, GlobalTrafficPolicy, SecurityProfile, GlobalSecurityProfile).

$ kubectl get crd | grep kruise.io
checkpoints.agents.kruise.io                             2026-05-19T03:49:36Z
commits.agents.kruise.io                                 2026-05-19T03:49:36Z
globalsecurityprofiles.agents.kruise.io                  2026-05-19T03:49:36Z
globaltrafficpolicies.agents.kruise.io                   2026-05-19T03:49:36Z
poolautoscalers.agents.kruise.io                         2026-05-19T03:49:36Z
sandboxclaims.agents.kruise.io                           2026-05-19T03:49:36Z
sandboxes.agents.kruise.io                               2026-05-19T03:49:36Z
sandboxsets.agents.kruise.io                             2026-05-19T03:49:37Z
sandboxtemplates.agents.kruise.io                        2026-05-19T03:49:37Z
sandboxupdateops.agents.kruise.io                        2026-05-19T03:49:37Z
securityprofiles.agents.kruise.io                        2026-05-19T03:49:37Z
trafficpolicies.agents.kruise.io                         2026-05-19T03:49:37Z

E2B APIs

OpenKruise Agents provides E2B protocol-compatible APIs

E2B Compatibility

⚠️ Important: The commands.run (command execution) and file system read/write APIs require the agent-runtime component to be injected into the Sandbox. Please ensure that your SandboxSet has configured runtimes: [{name: agent-runtime}]. For details, refer to the Runtime Injection documentation.

API Category	API	Compatibility Level	Notes
Lifecycle Management	create	Partially Compatible	Network access control is supported; see E2B Network Controls. MCP integration implementation pending.
	get_info	Fully Compatible
	list	Fully Compatible
	kill	Fully Compatible
	pause	Fully Compatible	Pause is synchronous: the request blocks until the sandbox reaches the Paused state
	resume	Fully Compatible
	connect	Fully Compatible
	set_timeout	Fully Compatible	Set the sandbox timeout (TTL), equivalent to E2B's Refresh sandbox API
Code Execution	run_code	Fully Compatible	Requires e2b-code-interpreter running in main container
Command Execution	commands.run	Fully Compatible	Requires runtime injection of agent-runtime component
File System	read/write	Fully Compatible	Requires runtime injection of agent-runtime component
	upload_url/download_url	Not Supported	Upload/download via pre-signed URL implementation pending
Logs	logs	Not Supported	Sandbox logs retrieval implementation pending
Metrics	metrics	Not Supported	Sandbox metrics retrieval implementation pending
Network	network	Partially Compatible	allowOut, denyOut, and rules are supported; egressProxy and maskRequestHost are rejected. See E2B Network Controls.
Lifecycle Events	https://api.e2b.app/events/sandboxes/{sbx.sandbox_id}	Not Supported	Lifecycle events implementation pending
Snapshot Management	snapshots	Fully Compatible	Specific snapshot behavior depends on Checkpoint implementation
Template Management		Partially Compatible	Template read supported, template write is not supported by design, recommend using container images as alternative
API Keys Management	teams, api-keys	Fully Compatible	OpenKruise Agents extension: multi-tenant API key management with team-based access control
Volumes	volumes	Not Supported	Persistent volume management implementation pending
